Description

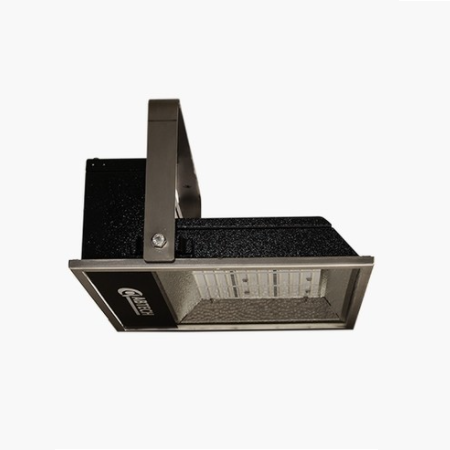

The Gamma is a high output LED floodlight is designed for use in Zone 1 & 21 hazardous areas. The compact design and flexible mounting allows the Gamma to also be used as a low bay.
It is fully ATEX and IECEx compliant. The Gamma utilizes high output LED modules that combine to provide a crisp and consistently uniform white light.
Manufactured in impact resistant glass-reinforced polyester (GRP), these hazardous area junction boxes are available in standard Abtech Grey or as a Black Carbon loaded version for anti-static applications. Ingress protected to IP66/67, they are also Shell/ERA deluge tested.
The luminaire enclosure is constructed from marine grade stainless steel for maximum corrosion resistance and is designed to operate at a wide range of ambient temperatures (-30 to +55°C).
The luminaire also features a rear-mounted termination enclosure for simple installation. Designed for the rigors of hazardous area operation, the Gamma LED floodlight features built in harmonic and overvoltage protection.
Features:
-
-
- High performance LED module providing uniform and crisp white light
- Stainless steel construction to ensure extended life in harsh conditions
- 5-year complete system warranty
-
Specifications:
-
- Luminaire Type: Zone 1 & 21 LED Floodlight/
- Ingress Protection: IP66/67 to EN60529
- Ambient Temperature: -30°C to +55°C
- Material: Stainless steel 316 grade housing, toughened glass window, silicone gaskets and stainless steel fixings
- Lamp Types: Light emitting diode, pure white (5700K)
- Color Rendering Index: > 80
- LED Life: 50,000 hours L70 @ 50°C
- Cable Entry: 2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug
- Terminals: Looping terminal block for up to 4mm² conductors
- Control Gear: Electronic driver: EN60601-1 (CE), EN61204-3 (EMC), EN61000-4-5 (Surge Protection Class 3)
- Orientation: 0° to 120°
- Mounting: Via saddle bracket
- Supply: 110 to 254V 50/60Hz AC
- Area Classification: Zone 1 & 21, Gas and Dust
- Type of Protection: Ex e (Increased Safety), Ex is (Intrinsically Safe), Ex op (Optical Radiation), Ex q (Quartz Filled) & Ex tb (Dust)
- Apparatus Coding*: Ex eb ib op is qb IIC T* Gb, Ex tb IIIC T*°C Db
- Certificate Number: CML 16ATEX093 / IECEx CML 16.0041
Specifications
| Brand | Abtech |
|---|---|
| Weight | 28.7 lbs |
| Item Type | Floodlight |
| Color Temperature | 5,700K |
| Lumen Output | 10870 |
| Power | 72 W |
