Description

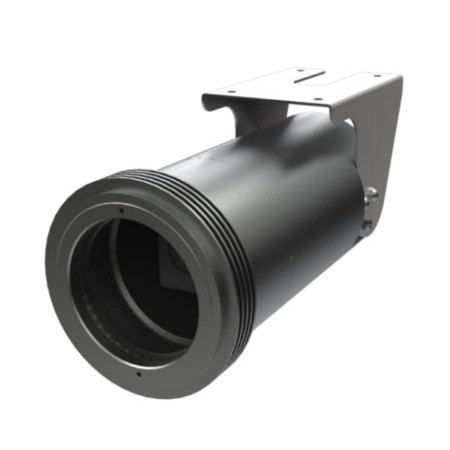

The VisEx instrumentation housing is suitable for housing various POE (power over Ethernet) camera and vision systems where operation in a Zone 1 hazardous area is required.
Machined from 316 Stainless Steel, this compact instrumentation enclosure is an ideal platform to host a multitude of sensors and instrumentation devices. The internal mounting bracket can be customized to pick up on the installation requirement of your specific device.
The VisEx features a toughened glass aperture to help minimize the effects of enclosing the device within a flameproof enclosure allowing installed equipment to function as intended.
- Marine grade stainless steel housing
- Suitable for a range of instrumentation and camera devices
- Custom mounting brackets to suit installed device
- Superior environmental protection
- Enclosure Type: Instrumentation Enclosure
- Ingress Protection: IP66/67 to EN60529
- Material: 316 Stainless Steel (EN 1.4404) enclosure, toughened glass window, silicone gasket and 316 stainless steel fasteners
- Access: Threaded front cover assembly
- Equipment Mounting: Internal mounting plate can be modified to suit range of devices
- Terminals: As per equipment to be contained
- Orientation: Universal
- Mounting: Bracket
- Supply: Maximum device voltage 60 V DC
- Area Classification: Zone 1 & 2 Gas and Dust
- Type of Protection: Ex d (flameproof)
- Apparatus Coding: II 2 GD Ex d II (see table for temperature rating & ambient temperature range)
- Certificate Number: SIRA11ATEX1157X / IECEx SIR 11.0071X
Features:
Specifications:
Specifications
| Brand | Abtech |
|---|---|
| Weight | 23.1 lbs |
| Item Type | Instrument Enclosure |
| Rating | T6/T4 |
