Description

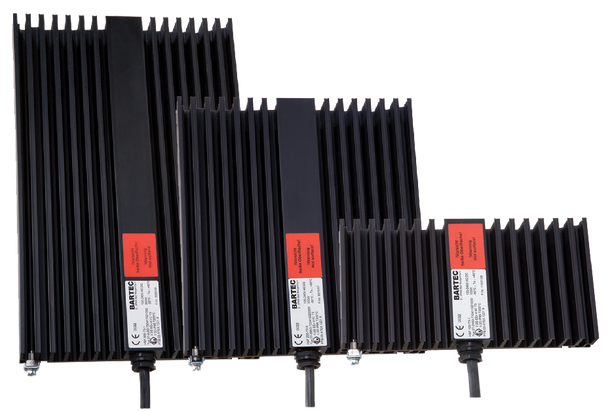

The extremely flat BARTEC HSF heater plates are mainly used in potentially explosive areas for applications, which require the maintenance of a specific temperature.
|
Type |
Power |
Temperature class |
Dimensions in mm (L X W X H) |
|
HSF 50-T4-5 |
50W |
T4 |
105 x 206 x 30 |
|
HSF 100-T3-5 |
100W |
T3 |
105 x 206 x 30 |
|
HSF 100-T4-5 |
100W |
T4 |
225 x 206 x 30 |
|
HSF 200-T3-5 |
200W |
T3 |
225 x 206 x 30 |
|
HSF 300-T3-5 |
300W |
T3 |
325 x 206 x 30 |
Features
- Self-limiting characteristic
- Random mounting position
- Extremely flat design
- ATEX gas and dust application approval
- Wide rated voltage range
- Large, black, anodized convector surface
- Ready-to connect, maintenance-free
Scope of Delivery
- Radiators purchased
Explosion protection:
- Marking
- II 2G Ex db IIC T4, T3 Gb
- II 2D Ex tb IIIC T135 °C, T200°C Db
- Certification
- PTB 03 ATEX 1221 X
- IECEx PTB 14.0019X
Other approvals and certificates, see bartec.com
