Description

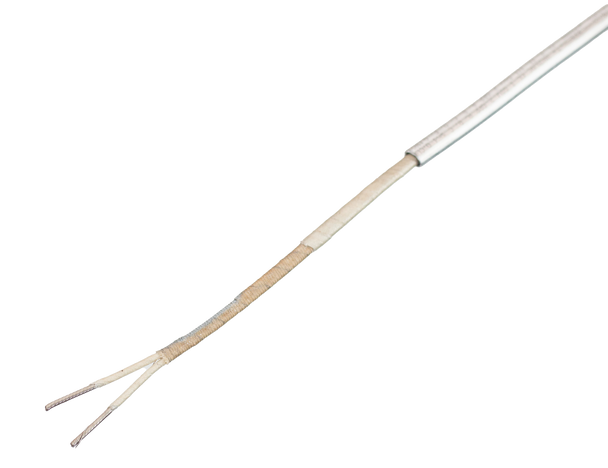

Power limiting heating cable (aluminum jacketed) used in hazardous and ordinary areas for freeze protection and process temperature maintenance applications for piping and equipment requiring high power output or high exposure temperatures of up to 797 F.
Features
- Can replace Mineral Insulated cables
- Cut to length
- Simple Installation
- High maintain temperature up to 662⁰ F
- Aluminum jacketing
Scope of Delivery
- Purchased length of Electric heat trace cable
Further Required/Not Included
- Power connection kit
- PBS-220-A (single)
- End of Line Light kit
- ELL-220-A
- Pipe Straps
- PC-1
- PC-2
- Attachment
- TW-05 (stainless steel tie wire)
- Heat trace warning labels
- HTWL-EN
- Control and monitoring
- Mechanical Thermostats
- Electronic Thermostats/Controllers
- RTDs
Explosion protection:
- Marking
- CSA Class I, Div. 2, Groups A, B, C, D
- CSA Class II, Div. 2, Groups E, F, G
- CSA Class III
- Certification
- CSA 70144884
