Description

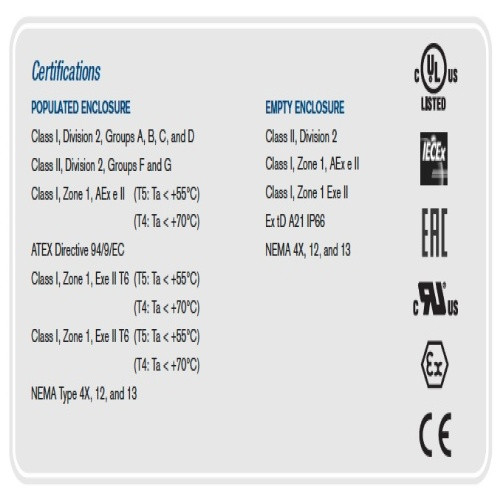

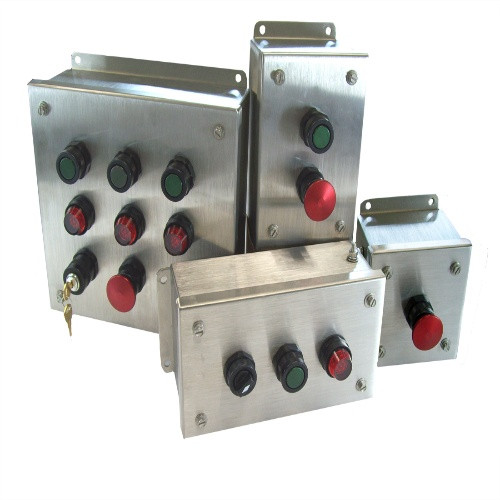

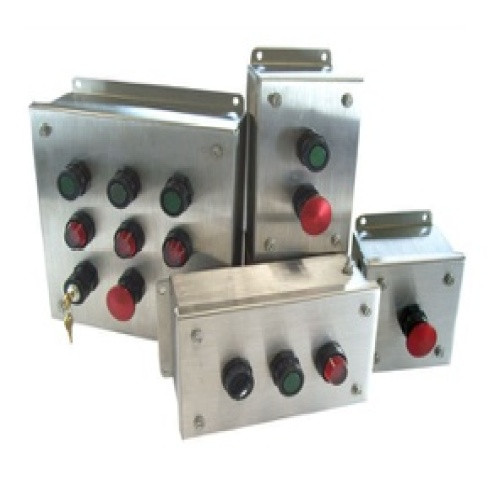

Adalet CSC4X6-130806 - The CSC4X(6) series by Adalet offers stainless steel 316L or 304 control station enclosures equipped with a continuous one-piece silicone gasket for IP66 ingress protection against dust and water. They include welded external mounting brackets, captive hex head/slotted cover bolts, and drilled entries for 30.5mm operators. Internal and external grounding studs, along with gland plates on deeper enclosures, support versatile installations. The materials feature stainless steel construction with brushed finishes, and certifications include Class I, Division 2, Groups A, B, C, D and Class II, Division 2, Groups F, G, among others, making them suitable for hazardous environments.
- Type 316L Stainless steel captive hex head, slotted cover screws
- Universal DIN rail mounting system (Except 050504/06)
- One-piece, NEMA 4 / IP66 water-tight gasket
- Internal/external grounding provisions
- Welded-on mounting flange with 0.31” clearance holes
- Ambient temperature range -40°C to +70°C
- 10 standard sizes with standard 30.5mm cover hole configurations
Specifications
| Enclosure Composition | 304 Stainless Steel |
| Enclosure Composition | 316L Stainless Steel |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Height | 13" |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Component | Stainless Steel Enclosure |
| Manufacturer | Adalet |
| Line | CSC4X6 |
| Enclosure Width | 11.5" |
| Enclosure Depth | 13.75" |
