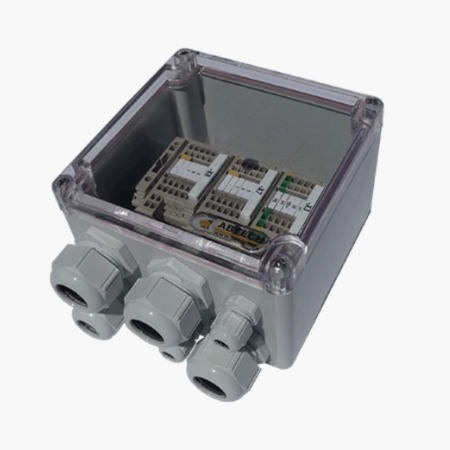

Abtech ZP Range – Tough Polycarbonate Enclosure – 7.9 x 4.7 x 3.0 – Z11

The ZP enclosure is lightweight yet extremely robust and offers good protection against both corrosion and oil-based contamination.

The ZP enclosure is available in either ABS plastic or polycarbonate material with the option of a clear polycarbonate lid which can be fitted to either base material type.

The enclosure shares the labyrinth seal arrangement which is common to both the ZAG and BPG ranges and can offer protection up to IP65. Stainless steel captive quick release, quarter-turn screws are fitted as standard offering a quick and reliable method of securing the lid.

The ZP range is an extremely versatile enclosure with many uses including junction boxes, instrument enclosures and OEM applications. The addition of the clear lid makes the ZP range particularly suitable for housing instruments and indicators where a visual indication is required without the need for opening the enclosure.

Features:

• Wide Operating Temperature
• Ingress Protection up to IP65
• Available in Polycarbonate and ABS
• Optional Transparent lid
• Can be molded any color (subject to minimum quantities)
• Can be easily machined and silk screen printed

Specifications:

• Application: Industrial Areas
• Material: Molded Polycarbonate – grey (RAL7035) or Molded ABS – grey (RAL7035)
• Polycarbonate Temp Rating: -40° to 120°C (-94° to 248°F)
