Description

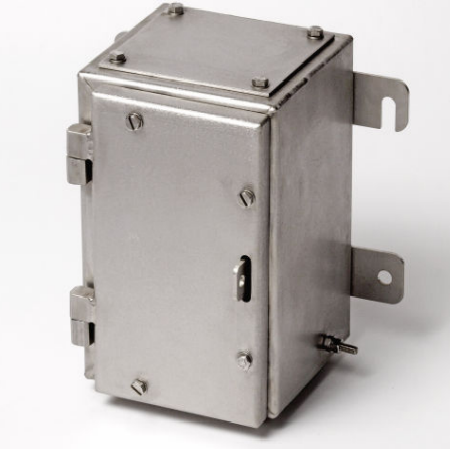

Abtech Stainless Steel Enclosures for Hazardous and Marine Applications
Features:
- Wide Operating Temperature : Hazardous area (- 50°C to + 175°C) (-58°F to +347°F); Non hazardous (-60°C to +200°C) (-76°F to 392°F)
- Material: 316 Stainless Steel
- Fire Resistant to IEC331
- Impact Resistant > 10 Nm
- Corrosion Resistant
- Gland plates can be fitted to any or all four sides (size SX66 and above)
- ATEX & IECEx (Zone 0, 1 & 2; Zone 20, 21 & 22)
- CSA Ex e (Class 1 Zone 1 & Zone 2)
- FM AEx e(Class 1 Zone 1 & Zone 2)
- TR CU Ex e (Zone 1 & Zone 2)
- NEMA 4X (CSA, UL & FM)
- Class 1 Division 2
- Power Rating: 19.874 W
- Ideal for Petrochemical and Marine applications
Specifications
| Brand | Abtech |
|---|---|
| Weight | 8.8 lbs |
| Dimensions | 6 × 9 × 7.9 in |
| Item Type | Stainless Steel Enclosures |
| Material | 316 Stainless Steel |
