Description

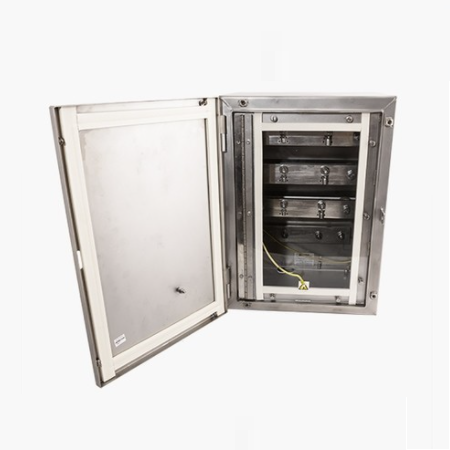

The latest addition to Abtech range of enclosures for high current applications. The SX busbar provides flexible termination for up to 3000 Amps.
The SX busbar features a flexible arrangement of tiered busbars allowing a variety of configurations suitable to higher current, often inflexible cables. These are housed within a 316L (1.404) stainless steel enclosure that is both IP66 and Type 4X rated and DTS-01 deluge tested.
Suitable for high current, medium voltage installations. The SX Busbar can accommodate up to five conductors per phase, plus neutral with an optional earth bar facility. All in a bottom or top entry only configuration. The full load current is determined per connector and is size-dependent.
- Simple connection for multiple and inflexible conductors
- DTS-01 deluge tested enclosure
- Ambient temperature range up to 90°C
- Anti-rotation design for smaller conductors
- Enclosure Type: High Current, Medium Voltage
- Ingress Protection: IP66/67 to EN60529, Type 4X, DTS-01 deluge tested
- Impact Resistance: >7Nm
- Material: 2mm 316L (EN 1.4404) Stainless Steel enclosure, silicone gasket and captive 316 stainless steel fasteners, 3mm 316L (EN 1.4404) Stainless Steel gland plates
- Ambient Temp Rating: -50°C to +90°C (refer to certificate for ΔT)
- Maximum Terminations: 5 conductors per phase + neutral (800mm²)
- No. of Gland Plates: Bottom or Top only
- Crimp Lugs: 6mm² to 800mm²
- Circuit Earthing: Earth bar facility option for circuit earthing conductors
- Equipotential Earthing: Via studs on enclosure, door and gland plates
- Mounting: Via 3mm thick external mounting straps, slotted upper strap for ease of installation
- Area Classification: Zone 1 & 21, Gas and Dust
- Type of Protection: Ex eb (Increased Safety), Ex tb (Dust Protected)
- Apparatus Coding: Ex eb IIC T4 Gb, Ex tb IIIC T70°C Db / Ex eb IIC T150°C Gb, Ex tb IIIC T110°C Db
- Certificate Number: CML 14ATEX3123X & IECEx CML 14.0047X
Features:
Specifications:
Specifications
| Brand | Abtech |
|---|---|
| Weight | 198.4 lbs |
| Dimensions | 20.1 × 30.7 × 15.7 in |
| Item Type | High-Voltage Enclosure |
| Conductor | 120 |
| Zone | 1 |
