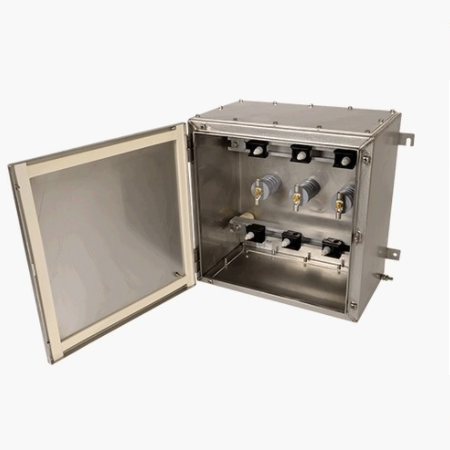

Abtech-Medium Voltage Junction Box-20.1 x 20.1 x 11.8, 16 W, 6.6 V-MJB85

The MJB range provides a simple, low cost but effective solution for the termination of cables up to 8.3kV in Ex-rated locations.

Manufactured from marine-grade 316L (1.404) stainless steel and used primarily for jointing cables or as a connection box, the MJB is suitable for up to four phase connections (top & bottom) and a maximum voltage of 8.3kV.

The MJB is a through connection box with cables coming in and out at 180 degrees. It accepts 6mm2 to 150mm2 for 4-way configuration and 35mm2 to 240mm2 as a 3-way.

Features:

• 180 degrees in and out cable connection
• DTS-01 deluge tested enclosure
• Suitable for low temperature applications

Specifications:

• Enclosure Type: High Voltage
• Ingress Protection: IP66 to EN60529, Type 4X, DTS-01
• Material: 316L Stainless Steel (EN 1.4404) enclosure, silicone gasket and A4 stainless steel fixings
• Ambient Temp Rating: -50°C to +40°C or -500°C to +650°C (refer to certificate – Table 2, max power dissipation)
• Maximum Terminations: Refer to enclosure rating table above
• Number of Gland Plates: 2
• Connector Size: 6mm to 150mm for 4 way/35mm to 240mm for 3 way
• Earthing: Via studs on enclosure, door and gland plates
• Mounting: Via 3mm thick external mounting straps, slotted upper strap for ease of installation
• Area Classification: Zone 1 & 21, Gas and Dust / Class 1 Division 2
• Type of Protection: Ex e, Ex tD
• Apparatus Coding: II 2 G D, Ex e II T6, Ex tD A21 IP66 T85°C
• Certificate Number: Sira 99ATEX3176
