Description

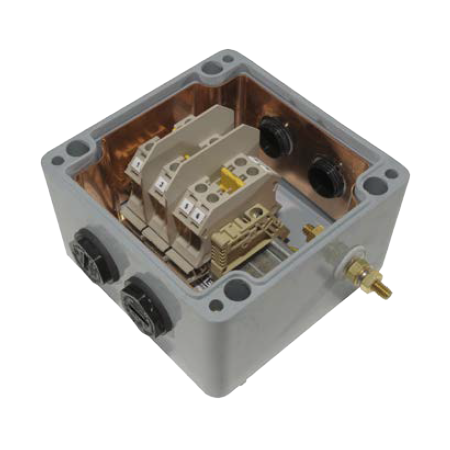

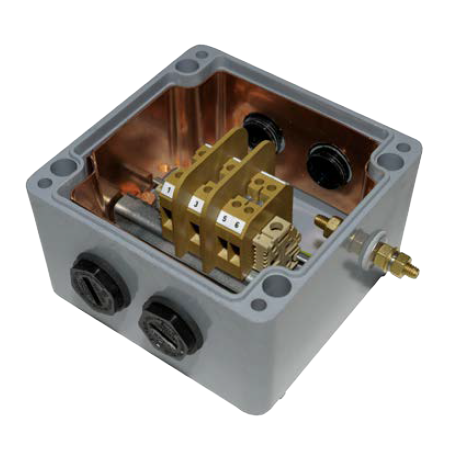

A fire rated GRP junction box designed to ensure increased fire survivability for safety-critical electronic circuits. The BPGF has been tested to provide PH120 insulation integrity in accordance with BS EN 50200.
The BPGF range is comprised of two sizes of fire-rated enclosures. These are pre-assembled with Abtech's 8-way or 12-way ceramic terminal blocks
For ease of installation, the BPGF is configured completely with four M20 threaded entries, two stainless steel plugs and two transit plugs.
The BPGF range has been tested to provide the highest level of insulation integrity (120-minute exposure), this is in accordance with BS EN 50200 & BS 8434-2 (>930°C) with exposure to fire with water spray & mechanical shock. Rated voltage 600Vrms.
- Increased fire survivability for safety critical electronic circuits
- PH120 to BS EN 50200 and BS 8434-2
- Tested in accordance with IEC 311
- 8-way or 12-way ceramic terminals
- All Stainless-Steel fixings
- Enclosure Type: Pre-assembled Fire Resistant GRP
- Ingress Protection: IP66 to EN60529
- Impact Resistance: >7Nm
- Material: Glass reinforced polyester in grey (RAL 7001). Captive 316 stainless steel fasteners and ceramic terminal block
- Ambient Temp Rating: -650°C to +130°C (for normal operation)
- Oxygen Index: 41.8%
- Smoke Density: 0.0328
- Toxicity: CIT NLP = 0.05 'R' Value to BS6853 Annex B.1 = 0.23
- Connector Size: Up to 6mm²
- PH120: Insulation integrity (120-minute exposure) in accordance with BS EN 50200 & BS 8434-2 (>9300°C) with exposure to fire with water spray & mechanical shock. Rated voltage 600V rms
- IEC 331: Insulation integrity (180-minute exposure) in accordance with IEC (>7500°C) with exposure to fire with water spray & mechanical shock. Electrical system fully functional before, during and after test
Features:
Specifications:
Specifications
| Brand | Abtech |
|---|---|
| Weight | 2.1 lbs |
| Dimensions | 4.8 × 4.7 × 3.5 in |
| Item Type | Junction Boxes |
| No. of Terminals | 8 |
| Conductor | 6mm |
