Description

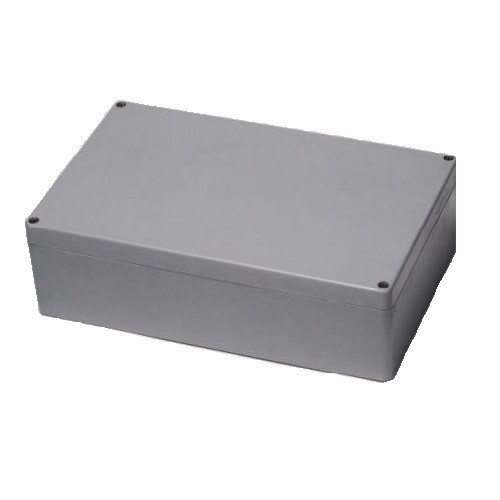

Abtech BPG Glass reinforced Polyester Enclosures for Hazardous and Industrial Areas
The BPG terminal enclosure is manufactured in glass reinforced polyester (GRP). This material is highly resistant to hydrocarbons and other industrial compounds, providing a high level of mechanical strength. It is also suitable for use in LSZH (low smoke zero halogen) applications.
Specifications:
- Protection Degree: IP66/67
- Certification: ATEX & IECEx (Zone 1 & 2; Zone 21 & 22); TR CU; NEMA 4X (CSA, UL & FM) Class 1 Division 2
- Material: Carbon Loaded Glass Reinforced Polyester
- Color: Black
- Temperature Rating, Hazardous Area: -85F to 266F
- Temperature Rating, Non Hazardous: -94F to 266F
- Power Rating: 15.474W
- Dimensions: 255 mm (10.04″) W x 250 mm (9.84″) H x 120 mm (4.72″) D
- Weight: 3200 (7.05 lbs)
Specifications
| Brand | Abtech |
|---|---|
| Weight | 7.1 lbs |
| Dimensions | 10 × 9.8 × 4.7 in |
| Item Type | GRP Enclosures |
| Material | Carbon Loaded Glass Reinforced Polyester |
| Color | Black |
