Ellis Apache Pipe Clamp – Product Overview
The Ellis Apache Pipe Clamp range is manufactured from robust black polyamide and is designed for secure and rapid installation of metric and imperial pipe systems. Featuring a ratchet design that accommodates a range of pipe sizes, the clamps are available in pipe hanger and framing channel configurations. Suitable for standard and non-standard pipes, the design includes a captive over-strap with no loose components and offers good chemical resistance, with continuous safe working temperatures up to 82°C.
Detailed Specifications
- Available in two product groups:
- Pipe Hanger Clamps
- Framing Channel Clamps
- Suitable for metric pipes from 15 mm to 171 mm outer diameter (o/d)
- Suitable for imperial pipes from ½” to 6” bore
- Ratchet design allows each clamp to accommodate a range of pipe sizes
- 16 clamps available per range
- Compatible with standard and non-standard pipe sizes
- No loose components — captive over-strap securely holds the pipe in place
- Designed for rapid and easy installation
- Good chemical resistance (contact us for detailed compatibility information)
- Robust construction made from black polyamide (material data sheet available upon request)
- Continuous safe working temperature up to 82°C
Contact Our Sales Team
For product information or ordering assistance, email sales@nasco-corp.com.
Specifications

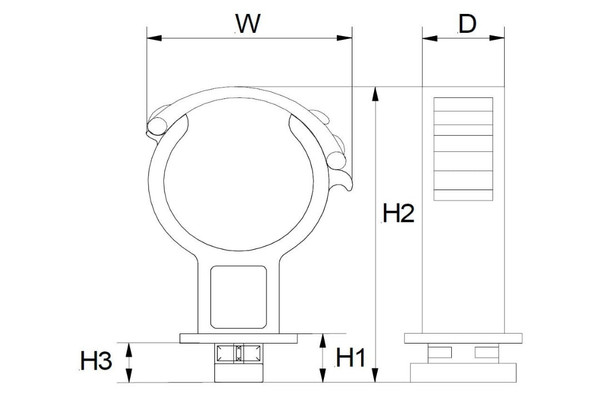

Please see the all the sizes of the complete line of Apache Pipe Clamps.
